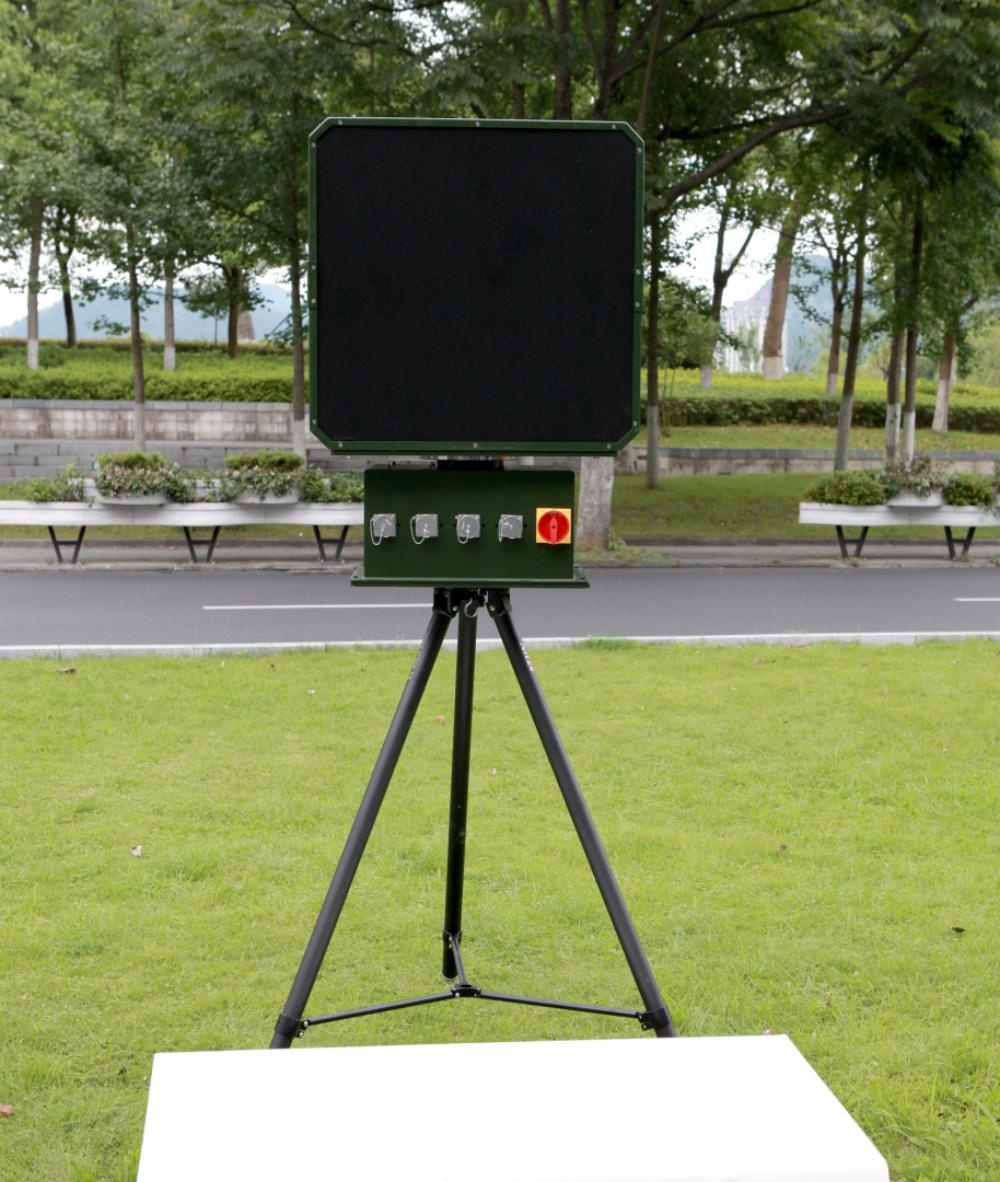

Smart Directional Sonic Bird Repeller
Category:
(Civil Aviation Air Force Power)
The sonic long-range high-intensity sound system is a device capable of delivering broadcast transmissions over long distances. Featuring high sound intensity and exceptional audio clarity, it ensures the effectiveness and accuracy of sound propagation at extended ranges. It can be deployed for long-distance announcements, broadcasts, guidance, warnings, deterrence, crowd dispersal, denial, and evacuation targeting specific audiences.
I. Product Structure
The device primarily consists of a long-range acoustic loudspeaker, a pan-tilt unit, and an operation controller. The long-range acoustic loudspeaker serves as the system’s core sound-output module, the rotary pan-tilt unit functions as the angle-adjustment module, and the operation controller acts as the product’s control center.
II. Operating Principle
It emits a long-range, highly directional acoustic beam by using high-frequency, densely pulsed sound waves to reduce the degree of wave diffusion and enhance beam focusing. The emitted sound waves exhibit extremely strong directivity; as soon as one moves away from the beam’s propagation axis, the intensity of the sound noticeably diminishes.
II. Innovative Highlights
The successful development of the ultrasonic long-range high-intensity sound system has eliminated the drawbacks of so-called imported products—high prices and poor performance. All models have been upgraded to IP65 waterproof standards, enabling operation in any outdoor environment. Furthermore, the internal design incorporates multiple imported components, resulting in performance that surpasses that of various so-called imported counterparts.
2. Equipment Parameters
1) Total power consumption: ≤2000W
2) Output power PORMS: 1200 W
3) Maximum Sound Pressure Level (SPL): ≥147 dB at 1 m
4) 3 dB beamwidth: ±15° at 1.0 kHz/-3 dB
5) Sound wave propagation distance: ≥1500 m (at 1500 meters, the sound pressure level is 49 dB; actual measured data may vary slightly due to factors such as the test environment, testing method, wind speed, wind direction, temperature, and humidity).
6) Frequency response range: 500–5 kHz
7) Continuous operating time: 2 hours per session
8) Power supply: 220V AC
9) Host weight: ≤100 kg
10) Protection rating: IP56
11) Pan-tilt horizontal rotation speed >0.1°–20°/s
12) Pan-tilt rotation speed > 0.1°–10°/s
13) Pan range: -180° to 180°
14) Pan-tilt rotation range: -45° to 45°
Smart Directional Sonic Bird Repeller
Category:
- Description
-
(Civil Aviation Air Force Power)
The sonic long-range high-intensity sound system is a device capable of delivering broadcast transmissions over long distances. Featuring high sound intensity and exceptional audio clarity, it ensures the effectiveness and accuracy of sound propagation at extended ranges. It can be deployed for long-distance announcements, broadcasts, guidance, warnings, deterrence, crowd dispersal, denial, and evacuation targeting specific audiences.
I. Product Structure
The device primarily consists of a long-range acoustic loudspeaker, a pan-tilt unit, and an operation controller. The long-range acoustic loudspeaker serves as the system’s core sound-output module, the rotary pan-tilt unit functions as the angle-adjustment module, and the operation controller acts as the product’s control center.
II. Operating Principle
It emits a long-range, highly directional acoustic beam by using high-frequency, densely pulsed sound waves to reduce the degree of wave diffusion and enhance beam focusing. The emitted sound waves exhibit extremely strong directivity; as soon as one moves away from the beam’s propagation axis, the intensity of the sound noticeably diminishes.
II. Innovative Highlights
The successful development of the ultrasonic long-range high-intensity sound system has eliminated the drawbacks of so-called imported products—high prices and poor performance. All models have been upgraded to IP65 waterproof standards, enabling operation in any outdoor environment. Furthermore, the internal design incorporates multiple imported components, resulting in performance that surpasses that of various so-called imported counterparts.
2. Equipment Parameters
1) Total power consumption: ≤2000W
2) Output power PORMS: 1200 W
3) Maximum Sound Pressure Level (SPL): ≥147 dB at 1 m
4) 3 dB beamwidth: ±15° at 1.0 kHz/-3 dB
5) Sound wave propagation distance: ≥1500 m (at 1500 meters, the sound pressure level is 49 dB; actual measured data may vary slightly due to factors such as the test environment, testing method, wind speed, wind direction, temperature, and humidity).
6) Frequency response range: 500–5 kHz
7) Continuous operating time: 2 hours per session
8) Power supply: 220V AC
9) Host weight: ≤100 kg
10) Protection rating: IP56
11) Pan-tilt horizontal rotation speed >0.1°–20°/s
12) Pan-tilt rotation speed > 0.1°–10°/s
13) Pan range: -180° to 180°
14) Pan-tilt rotation range: -45° to 45°
